Aerosmith® Sure-Wedge®

WEDGE ANCHOR ZINC ICC 3/8 X 5" 50/BX

WEDGE ANCHOR ZINC ICC 3/8 X 5" 50/BX

$38.80 USD
$38.80 USD
Sale Sold out

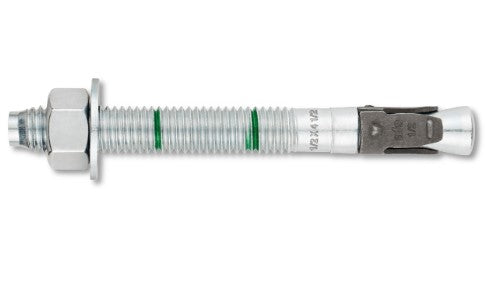

Aerosmith®’s Sure-Wedge® is a heavy duty mechanical anchor with torque-controlled, mechanical expansion, consisting of an anchor body, expansion clip, nut and washer. The anchor body has a tapered mandrel formed on the installed end of the anchor and a threaded section at the opposite end. Suitable base materials include, normal weight concrete and lightweight concrete. The anchors are used to resist static; wind and seismic tension and shear loads in cracked and uncracked normal weight and lightweight concrete having a specific compressive strength of 2500 PSI to 8500 PSI. The anchor is manufactured with a zinc plated carbon steel body and sherardized clip that wraps around the mandrel, rotating freely before installation.
View full details

Additional Information

Specifications

Technical Documents

https://anchors.aerosmithfastening.com/wp-content/uploads/2020/06/aerosmith-sure-wedge-performance-data.pdf

Benefits

  • Consistent performance in all types of concrete
  • Drill size same as anchor size
  • Easy and simple installation
  • One piece design
  • Comes complete with nuts and washers

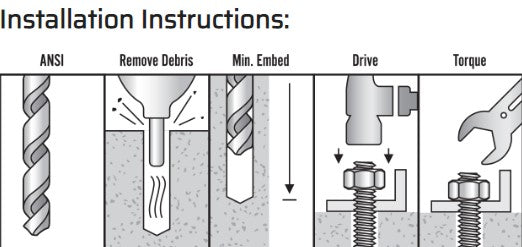

Installation Guidelines

Recommended Application

  • Barriers
  • Railings
  • Warehouse racking
  • Conveyor systems
  • Machinery
  • Signage
  • Fence posts
  • Shelving
  • Windows
  • Overhead doors
  • Electrical pipes
  • Light fixtures

Trademark

Full Description

Aerosmith®’s Sure-Wedge® is a heavy duty mechanical anchor with torque-controlled, mechanical expansion, consisting of an anchor body, expansion clip, nut and washer. The anchor body has a tapered mandrel formed on the installed end of the anchor and a threaded section at the opposite end. Suitable base materials include, normal weight concrete and lightweight concrete. The anchors are used to resist static; wind and seismic tension and shear loads in cracked and uncracked normal weight and lightweight concrete having a specific compressive strength of 2500 PSI to 8500 PSI. The anchor is manufactured with a zinc plated carbon steel body and sherardized clip that wraps around the mandrel, rotating freely before installation.
