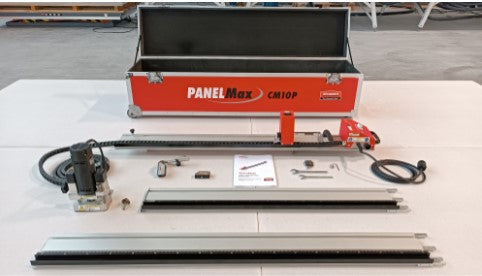

PanelMax CM10P

PanelMax CM10P

$10,111.28 USD
$10,111.28 USD
Sale Sold out

PanelMax CM10P was designed for on-site convenience. This compact and easily portable machine brings PanelMax precision to any jobsite. A companion to the industry-acclaimed PanelMax ST48 and FT30, CM10P creates perfect cuts and corners on interior gypsum.

  • CM10P includes a standard 10-ft capacity track, control unit and 1,000 watt milling unit.
  • Item Number: CM10P
View full details

Additional Information

Specifications

TECHNICAL SPECIFICATIONS

CUTTING LENGTH: UP TO 10.8' WITH AN EXTENSION RAIL

CUTTING WIDTH: UP TO 10.8' WITH NO EXTENSION RAIL

CUTTING DEPTH (SAW): UP TO 1.3" (OPTIONAL)

FEED: MAX. 26.3'/MIN, (THAT CAN BE CONTROLLED)

EQUIPMENT OPTIONS: SAW UNIT, TRACK EXTENSIONS

POWER REQUIREMENTS: 120V 50 HZ

POWER CONSUMPTION: 1.3 KW MAX.

1 YEAR OR 1000 HR LIMITED WARRANTY

Technical Documents

Benefits

MASS PRODUCTION

The PanelMax saw unit is capable of performing lamellar cuts 62 mm deep. The saw unit can also easily be repositioned to perform horizontal or logitutinal and angle cuts. A multi-blade attachment allows the saw unit to precision kerf cut drywall for collumns, arches and other radius applications.

  • Patented saw module
  • 62 mm cuting depth
  • Unique swivel feature for X and y axis adjustment
  • Convenient laser guide
  • Cuts on angle

Installation Guidelines

Recommended Application

STANDARD CONFIGURATION

  • PanelMax CM10P with hard case
  • Professional vacuum
  • 1000 watt glue gun with 19 foot extension
  • 3 boxes of hot glue (25lb box)
  • 3 cans of drywall primer
  • 1000 watt milling unit with 90o bit

Trademark

Full Description

QUICK CHANGE FLEXIBILITY

PanelMax’s quick change router and saw heads make set-up and change out easy. Simply unlock the router, slide it out and replace it with another router with a different bit.

  • Quick-change attachment
  • Laser guide

MASS PRODUCTION

The PanelMax saw unit is capable of performing lamellar cuts 62 mm deep. The saw unit can also easily be repositioned to perform horizontal or logitutinal and angle cuts. A multi-blade attachment allows the saw unit to precision kerf cut drywall for collumns, arches and other radius applications.

  • Patented saw module
  • 62 mm cuting depth
  • Unique swivel feature for X and y axis adjustment
  • Convenient laser guide
  • Cuts on angle

DUPLICATION

With its duplication arm, PanelMax can precisely match complex and repetitive shapes. Shapes like castle cuts that traditionally require quite a bit of labor can now be duplicated exactly with relatively little effort.

  • Duplicates inside and outside contours
  • Duplicates templates up to 1300 mm W, 750 mm L
  • Precisely duplicates template
  • Ideal for mass producing similar cuts such as castle cuts
