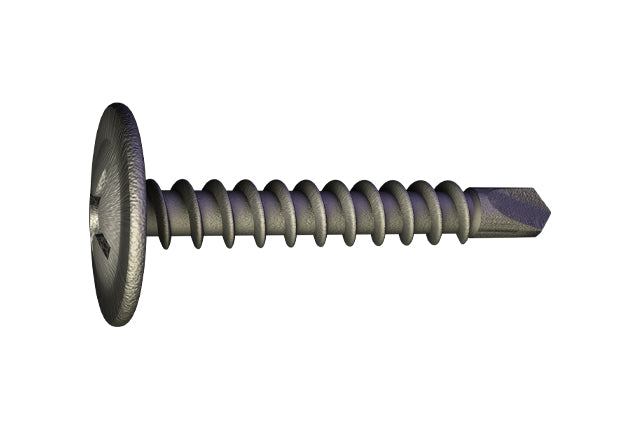

Grabber® 8 x 1-5/8-in Phillips, Modified Truss Head, Fine Thread, Drill Point GrabberGard® Screws (4,000 Count)

Application:Metal to Metal

Bit Tip:Phillips Bit Tip

Coating:GrabberGard® Gray

Gauge:8

Submittal Sheet

SDS - Fasteners - Effective September 2019 - August 2024.pdf

Product 248 Wafer Head Drivall Self Drilling Screw.pdf

• Grabber’s Pro-Fit™ # 2 Phillips recess is a precision recess designed for better bit engagement resulting in less wobble or strip-out.
• The modified truss head design provides a larger load bearing surface for better holding power.
• GrabberGard® limited lifetime exterior-grade coating provides additional protection against corrosion in most exterior applications.
• Consistently formed extra sharp drill point starts and drills easily into heavy gauge metal framing.

Use a standard screwgun with a depth-sensitive nose piece. Suggested screwgun specification for optimal performance – 4 amps minimum and RPM range of 0 to 2,500.

• The wafer head is fully seated when the head is flush with the work surface.
• Overdriving my result in fastener failure or strip out of the work surface.
• The fastener must penetrate beyond the metal three full thread pitches.

All GRABBER® screw products are manufactured in facilities that are ISO 9002 and ISO 14001 certified and approved.

Framing steel 33 mil or thicker. K-lath installation in steel substrate.

All GRABBER® screw products are manufactured in facilities that are ISO 9001 certified. The fasteners comply with ASTM C1513 and C954 requirements. Specific fasteners are listed in ICC ESR-1271; please check the report for listed item numbers. ©2012 GRABBER Construction Products, Inc. GRABBER®, STREAKER®, DRIVALL®, LOX®, GRABBERGARD® and SCAVENGER® are registered trademarks of Grabber Construction Products, Inc.

Application:Metal to Metal

Bit Tip:Phillips Bit Tip

Coating:GrabberGard® Gray

Gauge:8

Head Type:Modified Truss Head

Length:1-1/4-in

Package Type:Box Bulk

Point Type:Drill Point

Thread Type:Fine Thread

Count:4000
