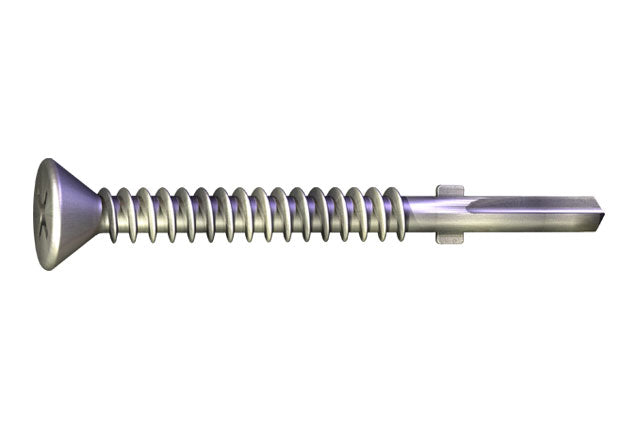

Grabber® 12 x 2-1/2-in Phillips, Flat Head, Fine Thread, Tek 3 Winged Drill Point Screws (1,500 Count)

Grabber® 12 x 2-1/2-in Phillips, Flat Head, Fine Thread, Tek 3 Winged Drill Point Screws (1,500 Count)

$328.89 USD
$328.89 USD
Sale Sold out

Attaches 1-in or thicker plywood to 20-8 gauge metal.

Superfast #3 drill point, 24 threads-per-inch, flat head provides a flush finished surface, winged point creates pilot hole through the plywood.

View full details

Additional Information

Specifications

Application:Plywood to Metal

Bit Tip:Phillips Bit Tip

Coating:Clear Zinc

Gauge:12

Technical Documents

Benefits

  • Grabber’s Pro-Fit™ # 2 Phillips recess is a precision recess designed for better bit engagement resulting in less wobble or strip-out.
  • The flat head design provides better holding power in sheathing to heavy gauge metal applications.
  • Grabber heavy gauge sheathing screws begin with the best available materials and conform to strict manufacturing requirements in thread forming. Extra sharp threads mean screws will drive faster and will hold better.
  • Consistently formed extra sharp drill point starts and drills easily into heavy gauge metal framing. Special wings clear away sheathing material as the screw drives eliminating jacking.

Installation Guidelines

Use a standard screw gun with a depth-sensitive nose piece. Suggested screw gun specification for optimal performance – 4 amps minimum and RPM range of 0 to 2,500.

  • The flat head is fully seated when the head is flush with the work surface.
  • Overdriving my result in fastener failure or strip out of the work surface.
  • The fastener must penetrate beyond the metal three full thread pitches.

Recommended Application

Attach sheathing to steel 33 mil or thicker.

Trademark

All GRABBER® screw products are manufactured in facilities that are ISO 9001 certified. The fasteners comply with ASTM C1513 requirements. Specific fasteners are listed in ICC ESR-1271; please check the report for listed item numbers. ©2012 GRABBER Construction Products, Inc. GRABBER®, STREAKER®, DRIVALL®, LOX®, GRABBERGARD® and SCAVENGER® are registered trademarks of Grabber Construction Products, Inc.

Full Description

Application:Plywood to Metal

Bit Tip:Phillips Bit Tip

Coating:Clear Zinc

Gauge:12

Head Type:Flat Head

Length:2-1/2-in

Metric Size:63.5

Package Type:Box Bulk

Point Type:Tek 3 Winged Drill Point

Thread Type:Fine Thread

WARNING

This product can expose you to chemicals including hexavalent chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
