Grabber®

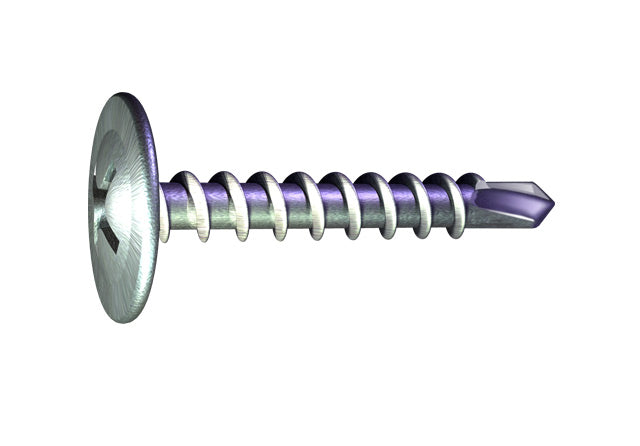

8 x 1-1/4-in Phillips, Modified Truss Head, Fine Thread, Drill Point Screws (5,000 Count)

8 x 1-1/4-in Phillips, Modified Truss Head, Fine Thread, Drill Point Screws (5,000 Count)

$148.19 USD
$148.19 USD
Sale Sold out
Designed for heavy (20-12) gauge metal applications where low profile head exposure is desired. Wafer head provides a greater bearing surface than pan or hex drillers, with a low-profile head exposure.
View full details

Additional Information

Specifications

Application:Metal to Metal

Bit Tip:Phillips Bit Tip

Coating:Clear Zinc

Gauge:8

Head Type:Modified Truss Head

Technical Documents

SDS - Fasteners - Effective September 2019 - August 2024.pdf

Product 248 Wafer Head Drivall Self Drilling Screw.pdf

Benefits

  • Grabber’s Pro-Fit™ # 2 Phillips recess is a precision recess designed for better bit engagement resulting in less wobble or strip-out.
  • The modified truss head design provides a larger load bearing surface for better holding power.
  • Grabber drill point modified truss head screws begin with the best available materials and conform to strict manufacturing requirements in thread forming. Extra sharp threads mean screws will drive faster and will hold better.
  • Consistently formed extra sharp drill point starts and drills easily into heavy gauge metal framing.

Installation Guidelines

Use a standard screw gun with a depth-sensitive nose piece. Suggested screw gun specification for optimal performance – 4 amps minimum and RPM range of 0 to 2,500.

  • The wafer head is fully seated when the head is flush with the work surface.
  • Overdriving my result in fastener failure or strip out of the work surface.
  • The fastener must penetrate beyond the metal three full thread pitches.

All GRABBER® screw products are manufactured in facilities that are ISO 9002 and ISO 14001 certified and approved.

Recommended Application

Framing steel 33 mil or thicker. K-lath installation in steel substrate.

Trademark

All GRABBER® screw products are manufactured in facilities that are ISO 9001 certified. The fasteners comply with ASTM C1513 and C954 requirements. Specific fasteners are listed in ICC ESR-1271; please check the report for listed item numbers. ©2012 GRABBER Construction Products, Inc. GRABBER®, STREAKER®, DRIVALL®, LOX®, GRABBERGARD® and SCAVENGER® are registered trademarks of Grabber Construction Products, Inc.

Full Description

Application:Metal to Metal

Bit Tip:Phillips Bit Tip

Coating:Clear Zinc

Gauge:8

Head Type:Modified Truss Head

Length:1-1/4-in

Package Type:5 LB

Point Type:Drill Point

Thread Type:Fine Thread
