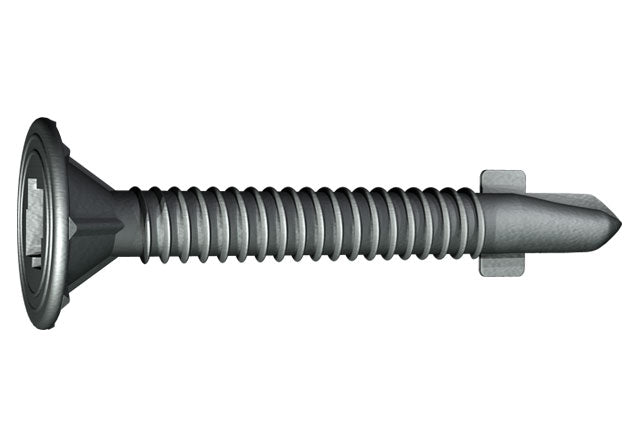

Grabber® 8 x 1-5/8-in LOX Drive, Flat Wafer Head, Fine Thread, Winged Drill Point Screws (4,000 Count)

Application:Sheathing to Metal

Bit Tip:LOX Bit Tip

Coating:GrabberGard® Gray

Gauge:8

• Submittal Sheet
• ICC Evaluation Report ESR-4223.pdf
• SDS - Fasteners - Effective September 2019 - August 2024.pdf

• LOX® recess was designed for todays screw guns and for applications where high-torque is required. LOX® will not strip out like most other recesses.
• .375-in flat wafer head with nibs design provides better holding power in cement board to light gauge metal applications. Special nibs self-countersink as the screw seats.
• GrabberGard® limited lifetime exterior-grade coating provides additional protection against corrosion in most exterior applications.
• consistently formed extra sharp pilot point starts and drills easily into heavy gauge metal framing. Special winged drill point clears away sheathing material as the fastener drives in.

Attaches high density sheathing to heavy gauge steel (20-14 ga.). These fasteners meet Hardie Board specification for minimum head diameter of 0.375". Superior GrabberGard exterior grade coating provides additional corrosion protection.

Specifications:
Gauge:                #8
Length:               1-5/8-in
Head Type:          Thin wafer with counter sinking nibs
Head Diameter:    .375 inch
Recess Type:       #2 LOX®
Thread Type:       Single lead
Point:                  Winged drill point
Coating:              GrabberGard® superior corrosion protection.

Installation Guidelines:
Use a standard screwgun with a depth-sensitive nose piece. Suggested screwgun specification for optimal performance – 4 amps minimum and 4000 RPM.

• Proper depth setting is paramount in this application.
• Overdriving may result in failure of the fastener or strip out of the
• work surface.


LOX® Recess 8 points of drive contact:LOX drive technology was created to solve the problems of all the other recess types. The recess is much less likely to strip out as compared to other recesses.

GrabberGard exterior grade coating
GrabberGard® metal finish is a high-grade proprietary metal surface processing technology that prevents corrosion. It is a duplex coating constituting a zinc substrate and organic polymer topcoat. The distinguishing feature of GrabberGard® is the joining and encapsulation the substrate with the fused organic surface coating. These layers are bonded together through thermal fusion, and this unique method of combining layers results in a combination of the coating films.

All GRABBER® screw products are manufactured in facilities that are ISO 9002 and ISO 14001 certified and approved.

Cement board to steel studs or runners, 33 mil or thicker. High density sheathing to steel studs or runners, 33 mil or thicker. Superior corrosion resistance.

All GRABBER® screw products are manufactured in facilities that are ISO 9001 certified. ©2012 GRABBER Construction Products, Inc. GRABBER®, STREAKER®, DRIVALL®, LOX®, GRABBERGARD® and SCAVENGER® are registered trademarks of Grabber Construction Products, Inc.

Application:Sheathing to Metal

Bit Tip:LOX Bit Tip

Coating:GrabberGard® Gray

Gauge:8

Head Type:Flat Wafer Head

Length:1-5/8-in

Package Type:Box Bulk

Point Type:Winged Drill Point

Thread Type:Fine Thread

Count:4000
