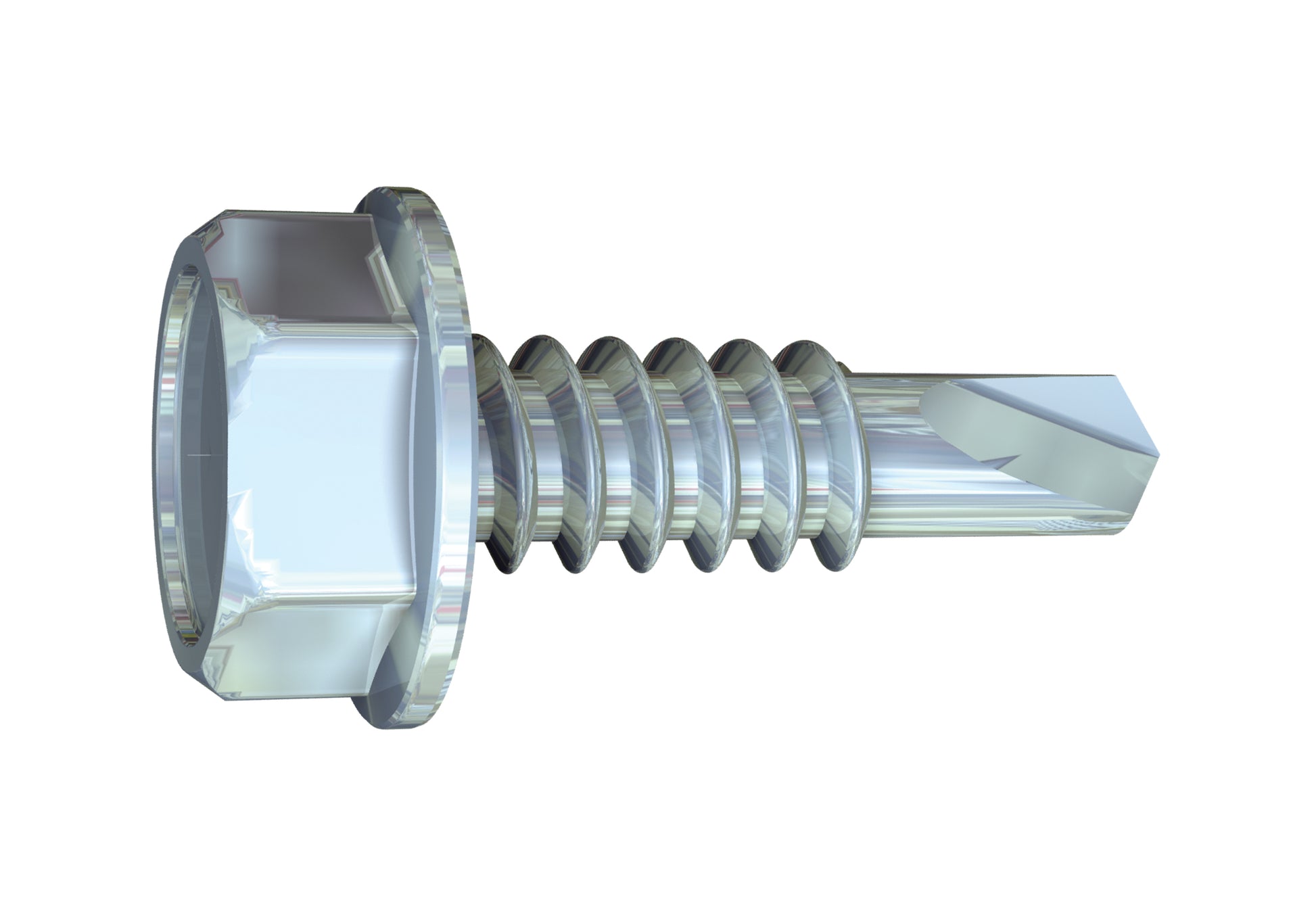

Grabber® 14 x 2-1/2-in Hex Head, Fine Thread, Tek 3 Drill Point Clear Zinc Screws (1,000 Count)

Grabber® 14 x 2-1/2-in Hex Head, Fine Thread, Tek 3 Drill Point Clear Zinc Screws (1,000 Count)

$172.98 USD
$172.98 USD
Sale Sold out

Attaches heavy gauge 20-8 ga. metal to metal. Hex head framing screw used in heavy gauge metal to metal applications where high torque is required.

Hydrogen Embrittlement:
Grabber’s 10-, 12-, and 14-gauge zinc-plated drill point fasteners are plated as prescribed in the ASTM F1941-10 Standard Specification for Electrodeposited Coatings on Threaded Fasteners, and post-plating baked according to the process articulated in SAE AMS 2759/9, Hydrogen Embrittlement Relief (Baking) of Steel Parts, Section 3.3.3.1, and SAE J78, which calls for a four-hour minimum time for baking out entrapped hydrogen after acid treating the parts.

View full details

Additional Information

Specifications

Application:Metal to Metal

Bit Tip:Nut Driver

Coating:Clear Zinc

Gauge:14

Technical Documents

Benefits

  • Hex washer head design provides maximum torque and holding power in metal to metal framing applications.
  • The hex washer head design provides a larger load bearing surface for better holding power.
  • Grabber drill point hex washer head screws begin with the best available materials and conform to strict manufacturing requirements in thread forming. Extra sharp threads mean screws will drive faster and will hold better.
  • Consistently formed extra sharp drill point starts and drills easily into heavy gauge metal framing.

Installation Guidelines

Use a standard screwgun with a depth-sensitive nose piece. Suggested screwgun specification for optimal performance RPM range of 0 to 2,500. Because of significantly higher torque output, care and caution should be exercised when using an impact driver, otherwise screw failure or spin out may occur.



  • The hex head is fully seated when the head is flush with the work surface.
  • Overdriving my result in fastener failure or strip out of the work surface.
  • The fastener must penetrate beyond the metal three full thread pitches.

Recommended Application

For heavy gauge steel-to-steel attachment 43 mil (18ga) or thicker.

Trademark

All GRABBER® screw products are manufactured in facilities that are ISO 9001 certified. ©2012 GRABBER Construction Products, Inc. GRABBER®, STREAKER®, LOX®, GRABBERGARD® and SCAVENGER® are registered trademarks of Grabber Construction Products, Inc.

Full Description

Application:Metal to Metal

Bit Tip:Nut Driver

Coating:Clear Zinc

Gauge:14

Head Type:Hex Head

Length:2-1/2-in

Package Type:Box Bulk

Point Type:Tek 3 Drill Point

Thread Type:Fine Thread

Amount:1000

WARNING

This product can expose you to chemicals including hexavalent chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
