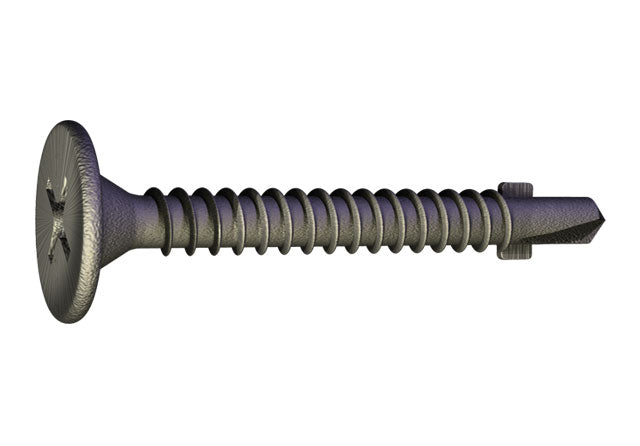

Grabber® 10 x 1-7/16-in Phillips, Thin Wafer Head, Fine Thread, Tek 3 Drill Point Screws (4,000 Count)

Grabber® 10 x 1-7/16-in Phillips, Thin Wafer Head, Fine Thread, Tek 3 Drill Point Screws (4,000 Count)

$409.11 USD
$409.11 USD
Sale Sold out

Attaches 3/16” to 3/4” plywood to 20-8 gauge metal. Wafer head provides a greater bearing surface than pan or hex drillers, with a low-profile head exposure.

Superfast #3 drill point, 24 threads-per-inch, thin wafer head provides a flush finished surface, winged point creates pilot hole through the plywood.

GrabberGard® exterior grade coating
GrabberGard metal finish is a high-grade proprietary metal surface processing technology that prevents corrosion. It is a duplex coating constituting a zinc substrate and organic polymer topcoat. These layers are bonded together through thermal fusion, and this unique method of combining layers results in a combination of the coating films.

View full details

Additional Information

Specifications

Application:Plywood to Metal

Bit Tip:Phillips Bit Tip

Coating:GrabberGard® Gray

Gauge:10

Technical Documents

Benefits

  • Grabber’s Pro-Fit™ # 2 Phillips recess is a precision recess designed for better bit engagement resulting in less wobble or strip-out.
  • Thin wafer head design provides for a larger load bearing surface and better holding power in sheathing to heavy gauge metal applications.
  • GrabberGard® limited lifetime exterior-grade coating provides additional protection against corrosion in most exterior applications.
  • Consistently formed extra sharp drill point starts and drills easily into heavy gauge metal framing.

Installation Guidelines

Use a standard screwgun with a depth-sensitive nose piece. Suggested screwgun specification for optimal performance – 4 amps minimum and RPM range of 0 to 2,500.

  • The wafer head is fully seated when the head is flush with the work surface.
  • Overdriving my result in fastener failure or strip out of the work surface.
  • The fastener must penetrate beyond the metal three full thread pitches.

Recommended Application

Attach sheathing, 3/16" to 3/4", to steel 33 mil or thicker. Superior corrosion resistance.

Trademark

All GRABBER® screw products are manufactured in facilities that are ISO 9001 certified. The fasteners comply with ASTM C1513 requirements. Specific fasteners are listed in ICC ESR-1271; please check the report for listed item numbers. ©2012 GRABBER Construction Products, Inc. GRABBER®, STREAKER®, DRIVALL®, LOX®, GRABBERGARD® and SCAVENGER® are registered trademarks of Grabber Construction Products, Inc.

Full Description

Application:Plywood to Metal

Bit Tip:Phillips Bit Tip

Coating:GrabberGard® Gray

Gauge:10

Head Type:Thin Wafer Head

Length:1-7/16-in

Package Type:Box Bulk

Point Type:Tek 3 Drill Point

Thread Type:Fine Thread
